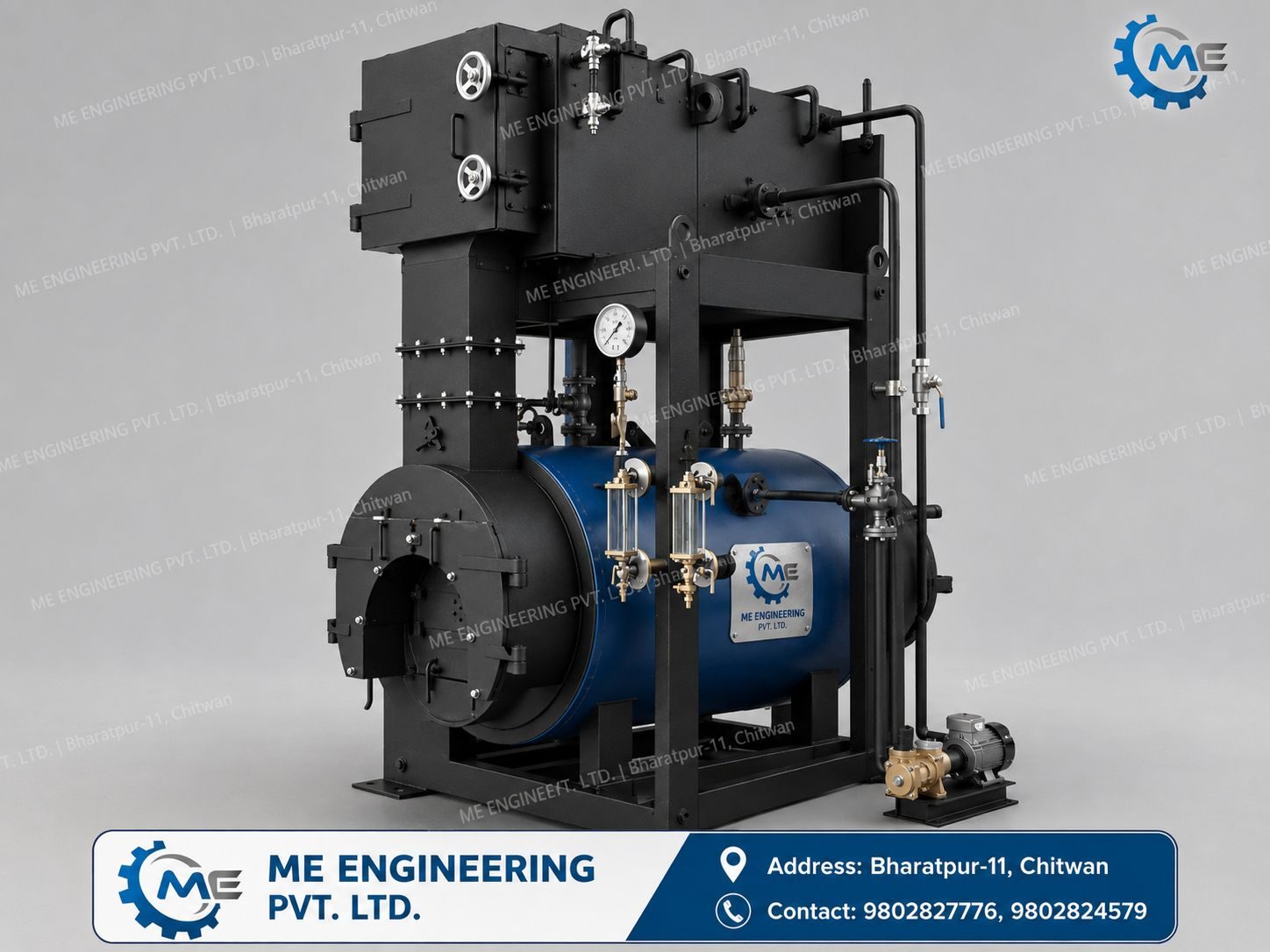

Horizontal Smoke Tube 3-Pass Internal Furnace Steam Boiler (500-600 kg/hr)

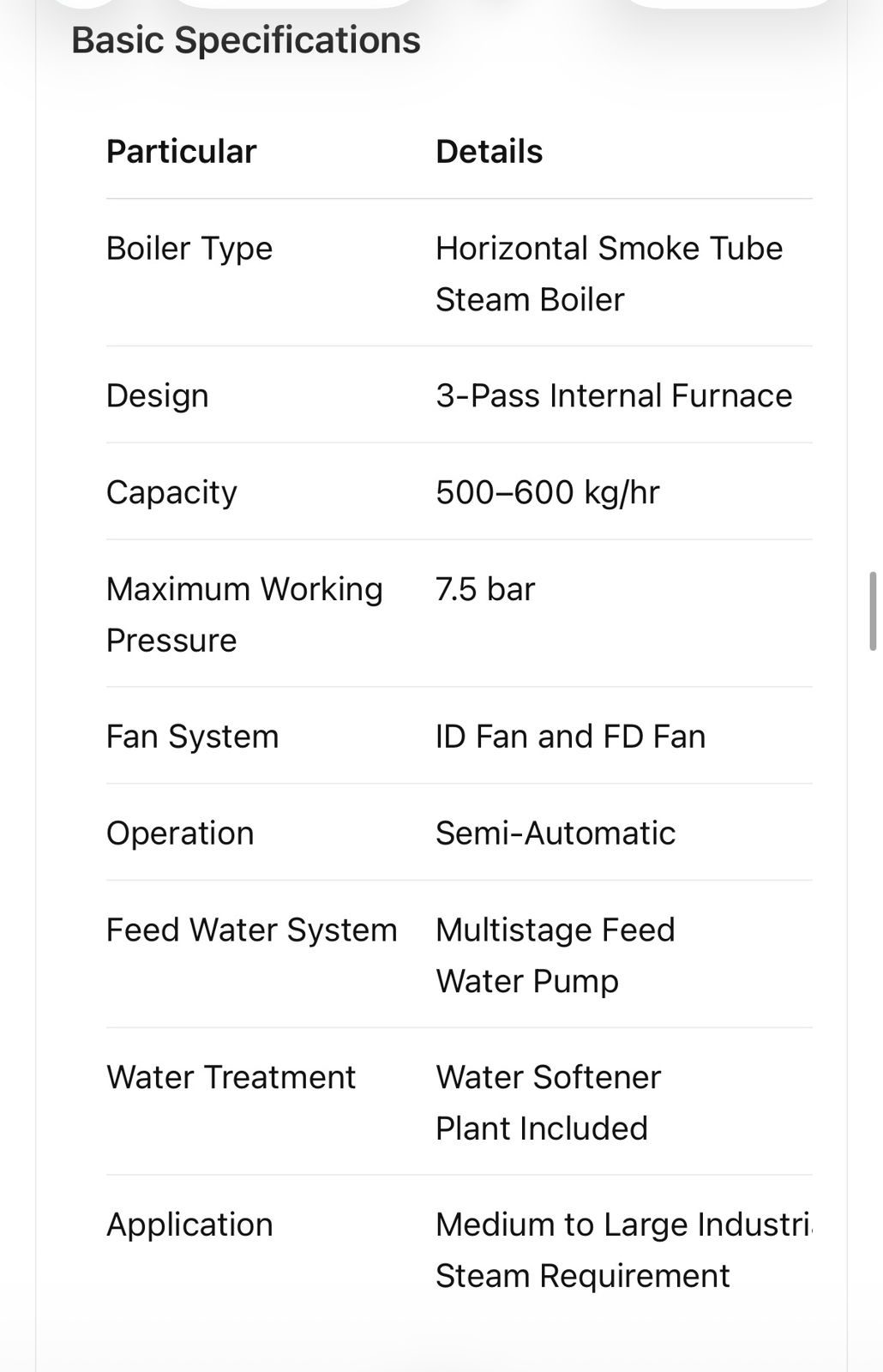

The Horizontal Smoke Tube 3-Pass Internal Furnace Steam Boiler (500-600 kg/hr) is an industrial steam boiler designed to generate saturated steam for medium and large-scale production facilities. With a steam capacity of 500-600 kg/hr and a maximum working pressure of 7.5 bar, it provides a dependable steam supply for process heating, manufacturing, and utility applications requiring continuous operation.

Built with a horizontal smoke tube configuration and internal furnace, the boiler features a three-pass flue gas design that extracts maximum heat from combustion gases before they exit the chimney. This improves thermal efficiency, reduces fuel consumption, and delivers stable steam output throughout the production cycle.

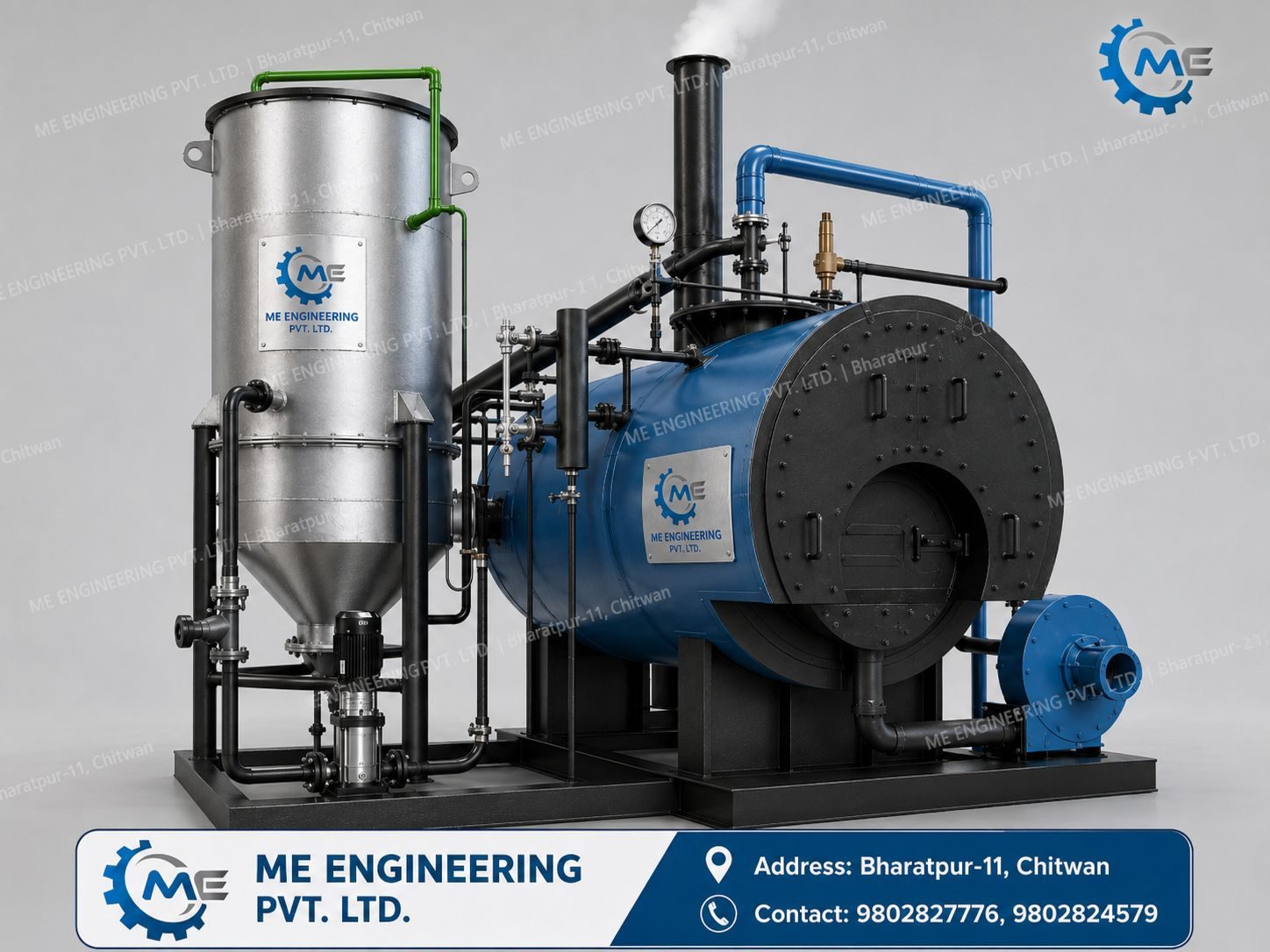

The complete boiler package includes an induced draft (ID) fan, forced draft (FD) fan, semi-automatic control panel, multistage feed water pump, water preheater, water softener plant, chimney connection, and all essential boiler mountings such as a safety valve, pressure gauge, gauge glass assembly, and main steam stop valve. Together, these components ensure safe operation, efficient performance, and simplified maintenance.

Designed for reliable industrial service, this boiler is well suited for food processing plants, dairy industries, packaging facilities, hospitals, pharmaceutical manufacturing, textile processing, and other production environments where uninterrupted steam generation is essential. ME Engineering provides complete engineering support, installation, commissioning, and after-sales service throughout Nepal.
