Self-Acting Pressure Reducing Valve (Pilot & Piston Operated)

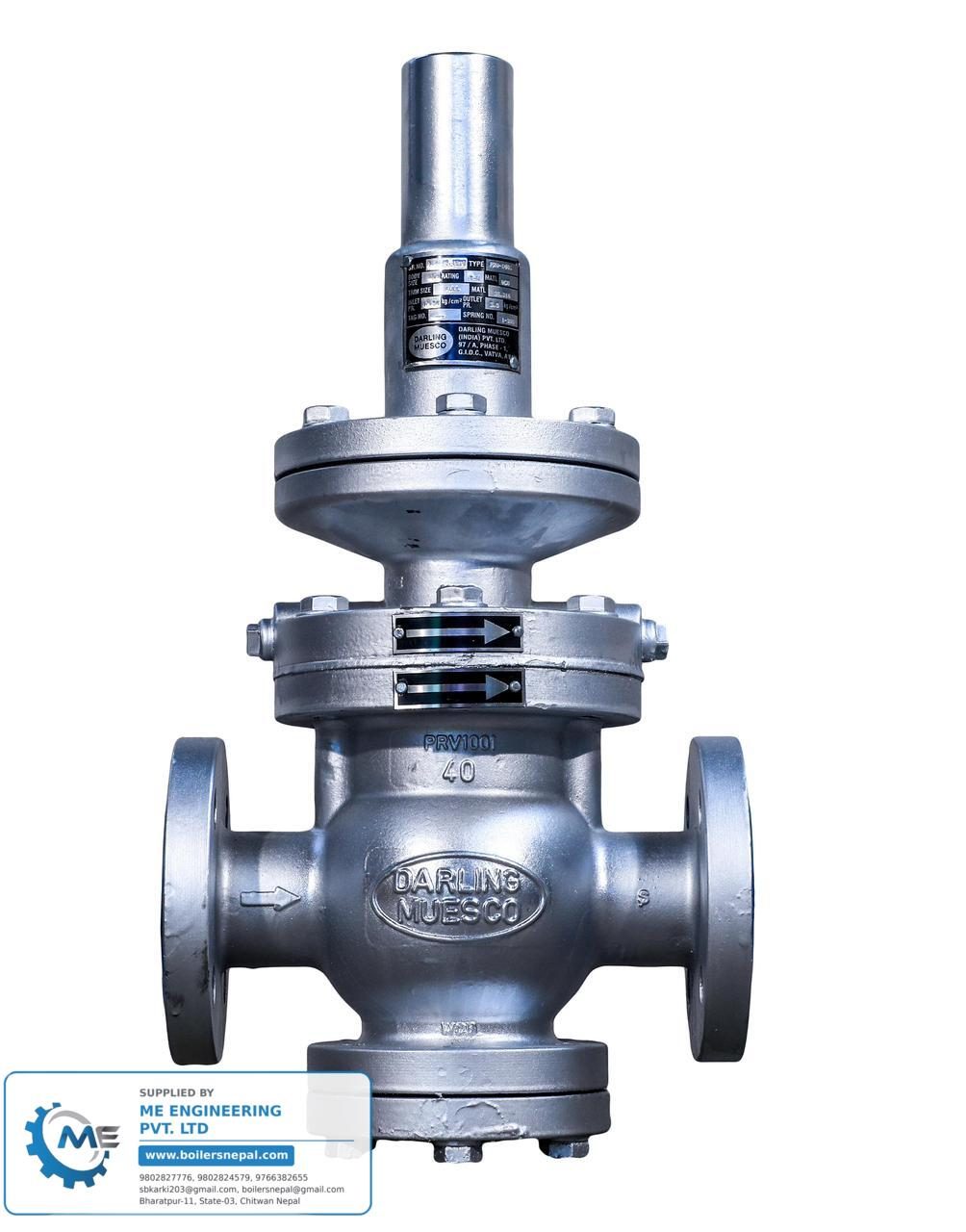

A pressure reducing valve (PRV) is a self-acting device that automatically lowers and maintains downstream steam pressure to a set value, without requiring an external power source or control signal. This Darling Muesco self-acting pilot and piston operated pressure reducing valve is designed for boiler steam lines, steam distribution systems, and industrial process applications where consistent downstream pressure is essential. Self-Acting Pilot and Piston Operation The valve uses a pilot-operated piston mechanism that senses downstream pressure and adjusts valve position automatically to hold it steady, even as upstream pressure or steam demand fluctuates. This self-acting design eliminates the need for electricity or compressed air, making it simple to install and reliable in continuous operation. Robust Construction for Steam Service Built for heavy-duty steam applications, the valve features a flanged end connection for secure installation in industrial piping. It is available in 25 NB, 40 NB, 50 NB, and 80 NB sizes, with other sizes available on request. Where It Is Used The valve is widely used on boiler steam lines to step down high-pressure steam to the lower pressure required downstream, and in process heating systems and industrial utility lines where stable steam pressure protects equipment and improves process consistency.
