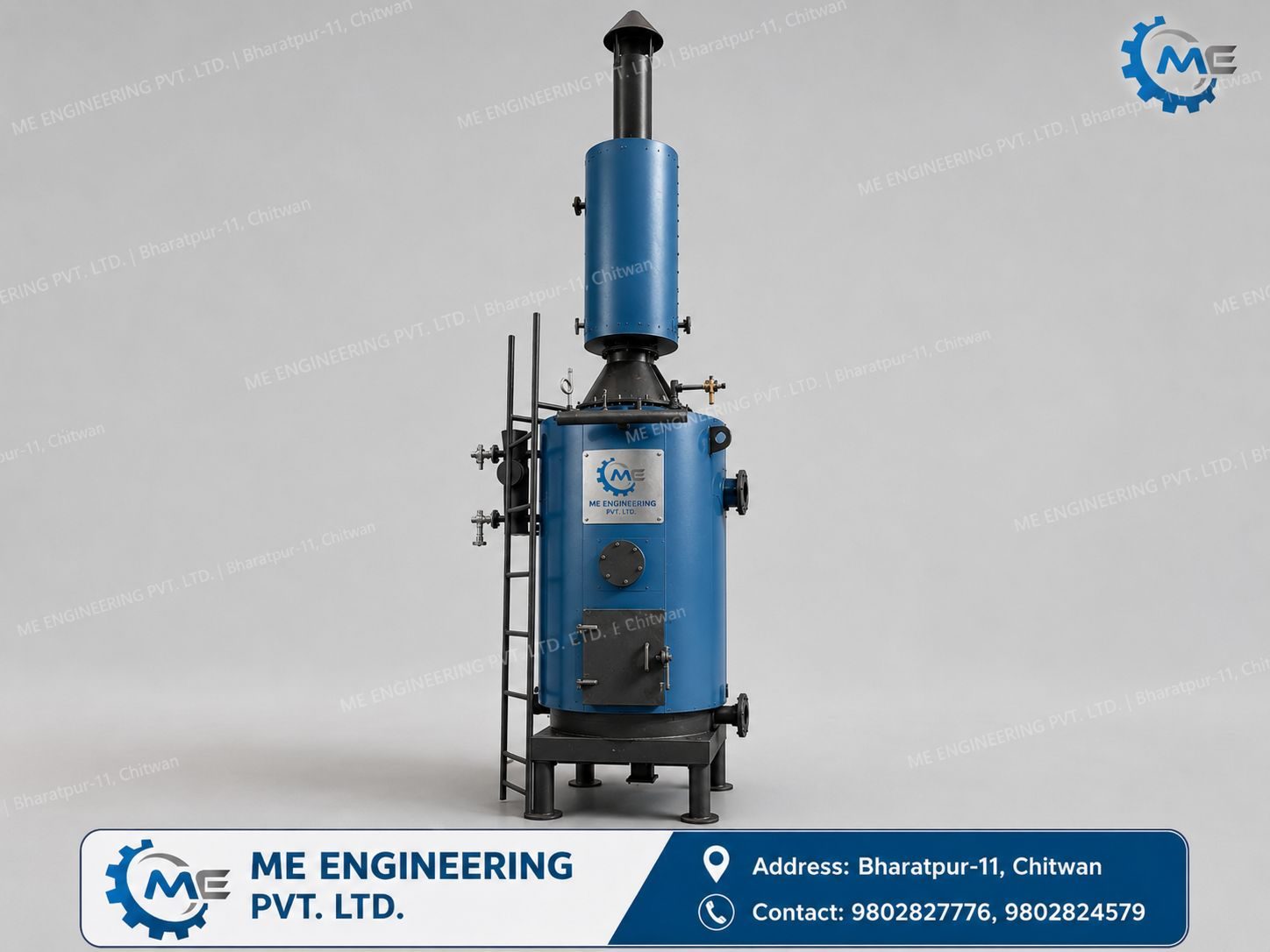

Vertical Cross Tube Water Tube Internal Furnace Steam Boiler
Vertical Cross Tube Water Tube Internal Furnace Steam Boilers provide compact, efficient, and reliable steam generation for industries where installation space is limited and continuous process steam is required.
- IBR / ASME standard
- Engineered in Nepal
- Nationwide service
Overview

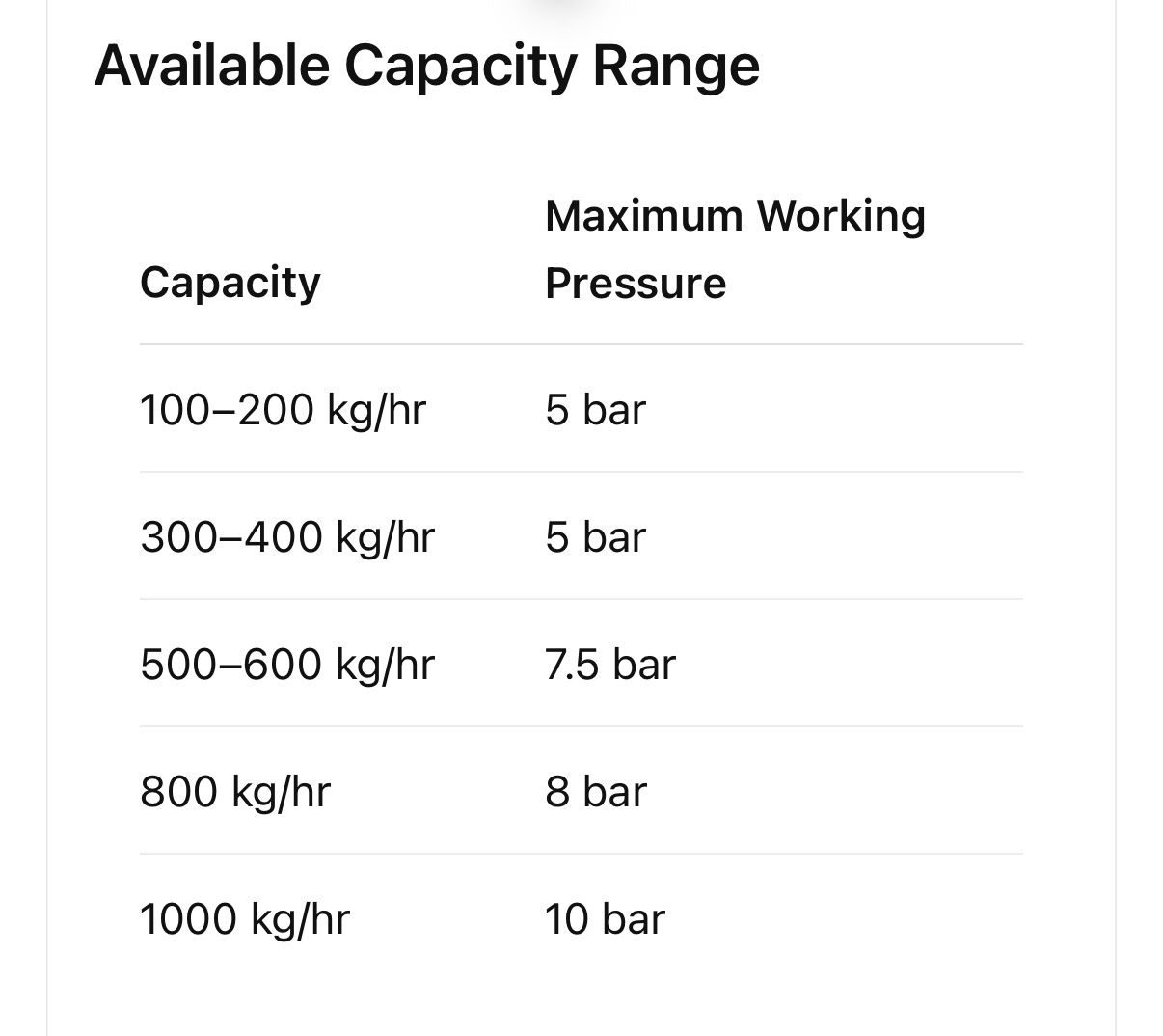

The Vertical Cross Tube Water Tube Internal Furnace Steam Boiler is a compact industrial steam boiler designed to generate saturated steam for process heating, cooking, sterilizing, drying, washing, boiling, and other industrial applications. Manufactured in capacities ranging from 100 kg/hr to 1000 kg/hr with working pressures up to 10 bar, these boilers are ideal for industries requiring reliable steam generation while minimizing installation space.
The boiler features a vertical cross tube water tube construction with an internal furnace that promotes efficient heat transfer and rapid steam generation. Its vertical configuration occupies significantly less floor space than conventional horizontal boilers, making it an excellent choice for factories, hotels, hospitals, laundries, and production facilities with limited boiler room space.

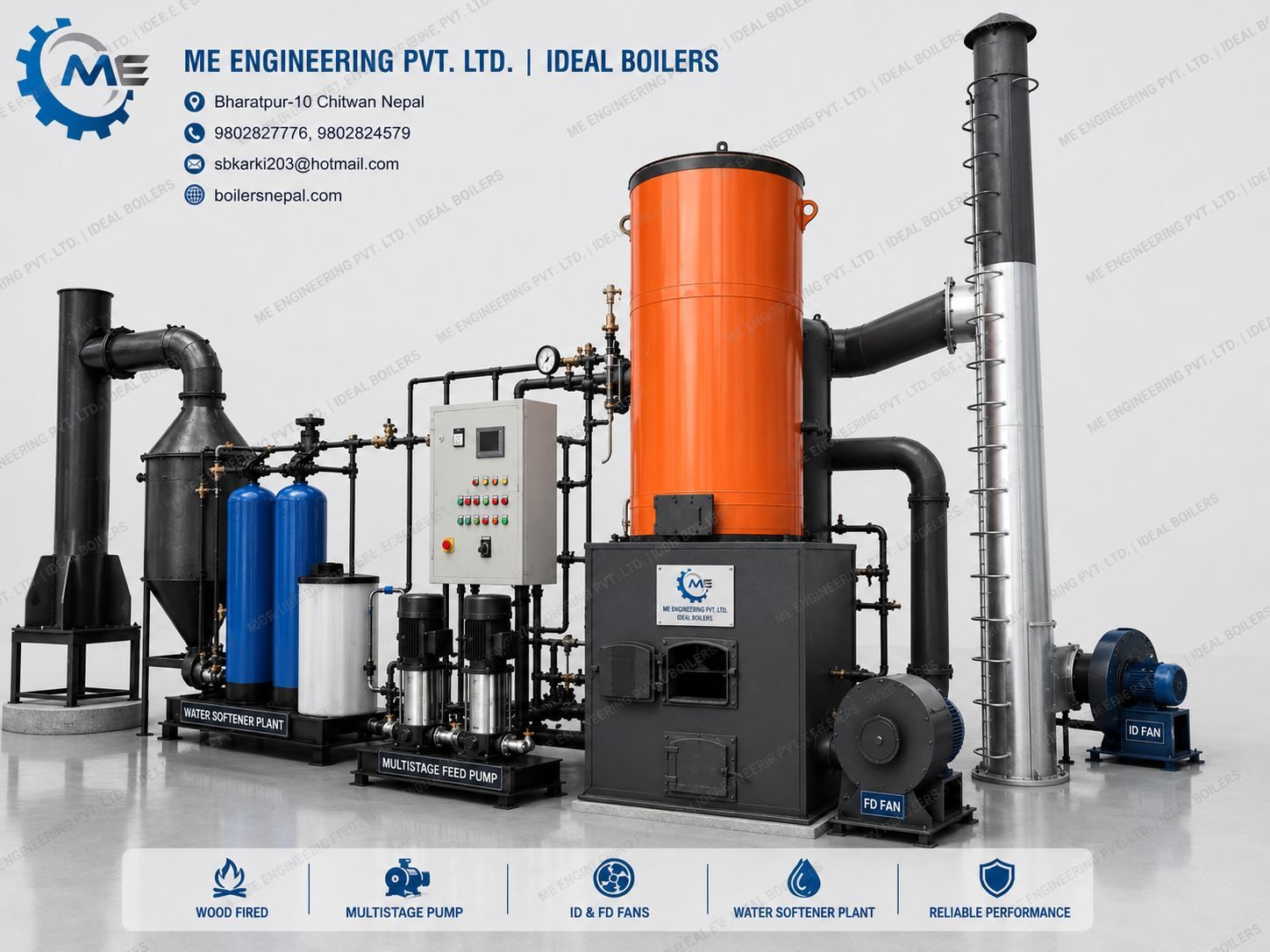

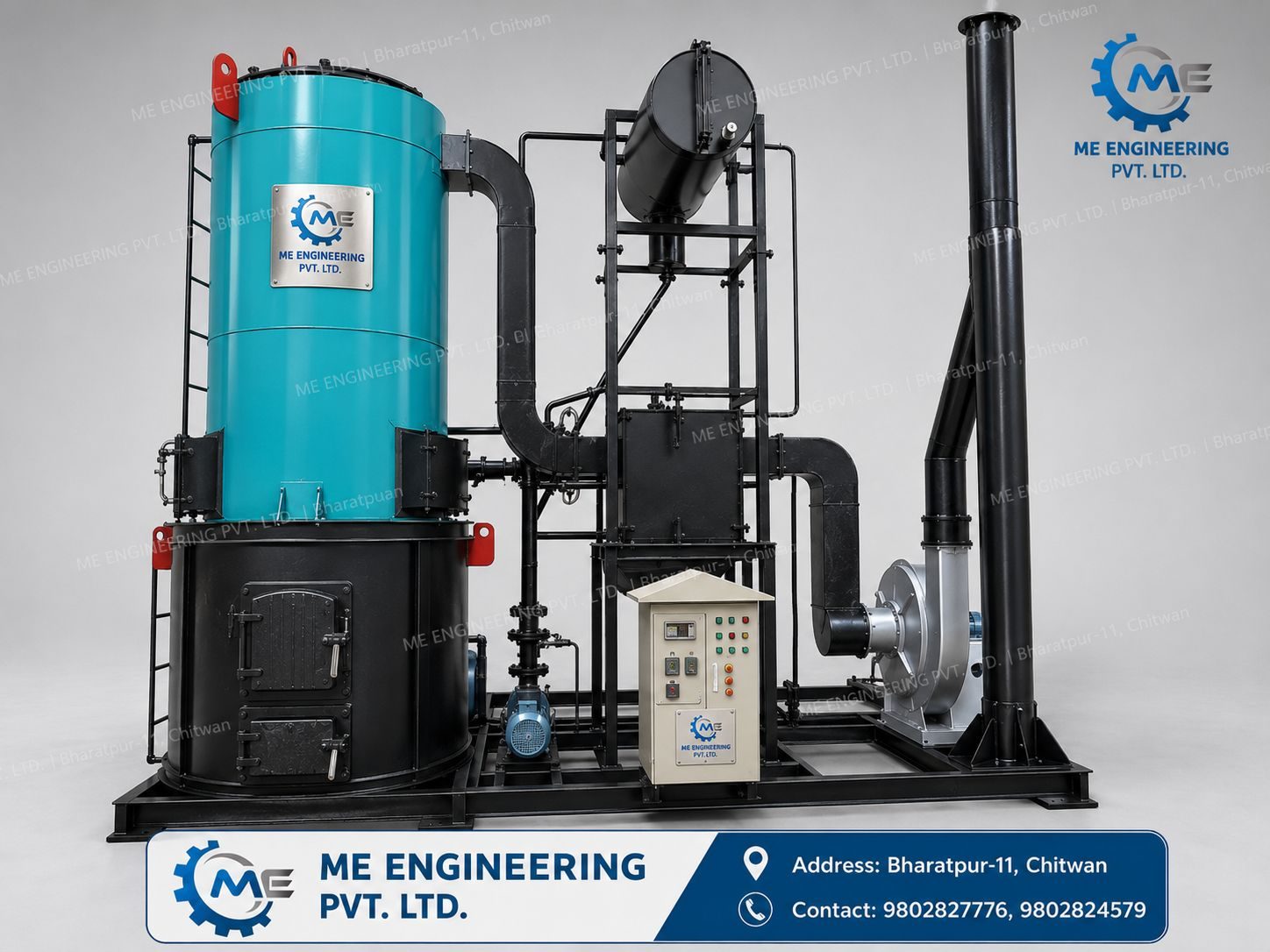

Each boiler is supplied as a complete package with an SS304 nozzle bed, FD fan, suitable boiler feed water pump, semi-automatic control panel, water preheater, chimney, water softener plant, and all essential boiler mountings including a safety valve, main steam stop valve, pressure gauge, and gauge glass assembly. The SS304 nozzle bed offers excellent corrosion resistance and durability, while the water preheater and water softener help improve thermal efficiency, reduce scale formation, and extend boiler service life.
Designed for dependable industrial performance, ME Engineering's Vertical Cross Tube Water Tube Internal Furnace Steam Boilers are suitable for continuous operation across a wide range of industries. Complete engineering support, installation, commissioning, maintenance, and after-sales service are available throughout Nepal.
Built and supplied by ME Engineering to IBR / ASME standards, with full documentation and nationwide service support.
Technical Specifications
Applications
Benefits
Compact vertical design saves floor space
Rapid steam generation with water tube construction
Efficient heat transfer for improved fuel economy
Reliable continuous steam supply
SS304 nozzle bed for long service life
Reduced scale formation with water softener system
Easy installation and operation
Complete boiler package with essential accessories
Low maintenance requirements
Frequently Asked Questions
What capacities are available?
Standard capacities range from 100 kg/hr to 1000 kg/hr.
What is the maximum working pressure?
Models are available with working pressures up to 10 bar.
Why choose a vertical steam boiler?
Its compact design requires less installation space while providing efficient and reliable steam generation.
What is included with the boiler package?
The package includes the boiler, SS304 nozzle bed, FD fan, feed water pump, control panel, water preheater, water softener plant, chimney, and essential boiler mountings.
Does ME Engineering provide installation and after-sales support?
Yes. Installation, commissioning, maintenance, and technical support are available (confirm with owner).
