Energy Efficiency Optimisation
ME Engineering audits your boiler and steam system, identifies energy losses, and delivers a clear action plan to reduce fuel consumption, cut operating costs, and lower emissions across your plant.
- In-house engineers
- IBR / ASME standard
- Nationwide service
Overview
Energy efficiency optimisation for industrial boiler and steam systems is a structured assessment process that measures how efficiently a plant generates and uses thermal energy, identifies where energy is being lost, and recommends specific, costed improvements. ME Engineering carries out site-based energy audits covering boiler combustion performance, steam distribution, insulation condition, condensate recovery, and auxiliary equipment — and delivers a written report with prioritised recommendations for the plant owner to act on.What the Service Covers1. Energy Audit and Assessment
The audit is the foundation of the service. Our engineers visit your site, review your fuel consumption records, and carry out measurements across your boiler and steam system. The audit covers: Boiler fuel input (litres/day or kg/day) vs. steam output (TPH or kg/hr) Flue gas analysis — CO₂, O₂, CO, and flue gas temperature — to calculate combustion efficiency Stack heat loss as a percentage of fuel input Boiler blowdown frequency and heat loss from blowdown Overall boiler thermal efficiency (%) compared to design rating The audit report states your current system efficiency, quantifies losses in kW and in fuel cost per year, and lists recommended actions ranked by payback period.2. Boiler Efficiency Tuning (Combustion Optimisation)
Incorrect air-to-fuel ratio is one of the most common causes of boiler inefficiency. Excess air above approximately 15–20% for oil-fired boilers wastes fuel by heating nitrogen that passes straight out of the stack. Too little air causes incomplete combustion, CO formation, and sooting of heat transfer surfaces. Our engineers measure O₂ and CO in the flue gas using a calibrated analyser and recommend burner adjustments — air damper settings, fuel pressure, or burner head repositioning — to bring combustion to the optimum point. A 1% reduction in excess O₂ typically improves efficiency by approximately 0.5%.3. Insulation and Heat Loss Survey
Bare or damaged pipe insulation, uninsulated flanges, and poorly lagged valves radiate heat continuously — 24 hours a day, 365 days a year. We carry out a thermal imaging and contact temperature survey of your steam and condensate pipework, identifying surfaces where surface temperature exceeds acceptable limits. The report quantifies heat loss in kW per metre for each identified section and recommends insulation specification and thickness based on operating temperature (up to (confirm with owner) °C) and ambient conditions.4. Waste Heat Recovery Assessment

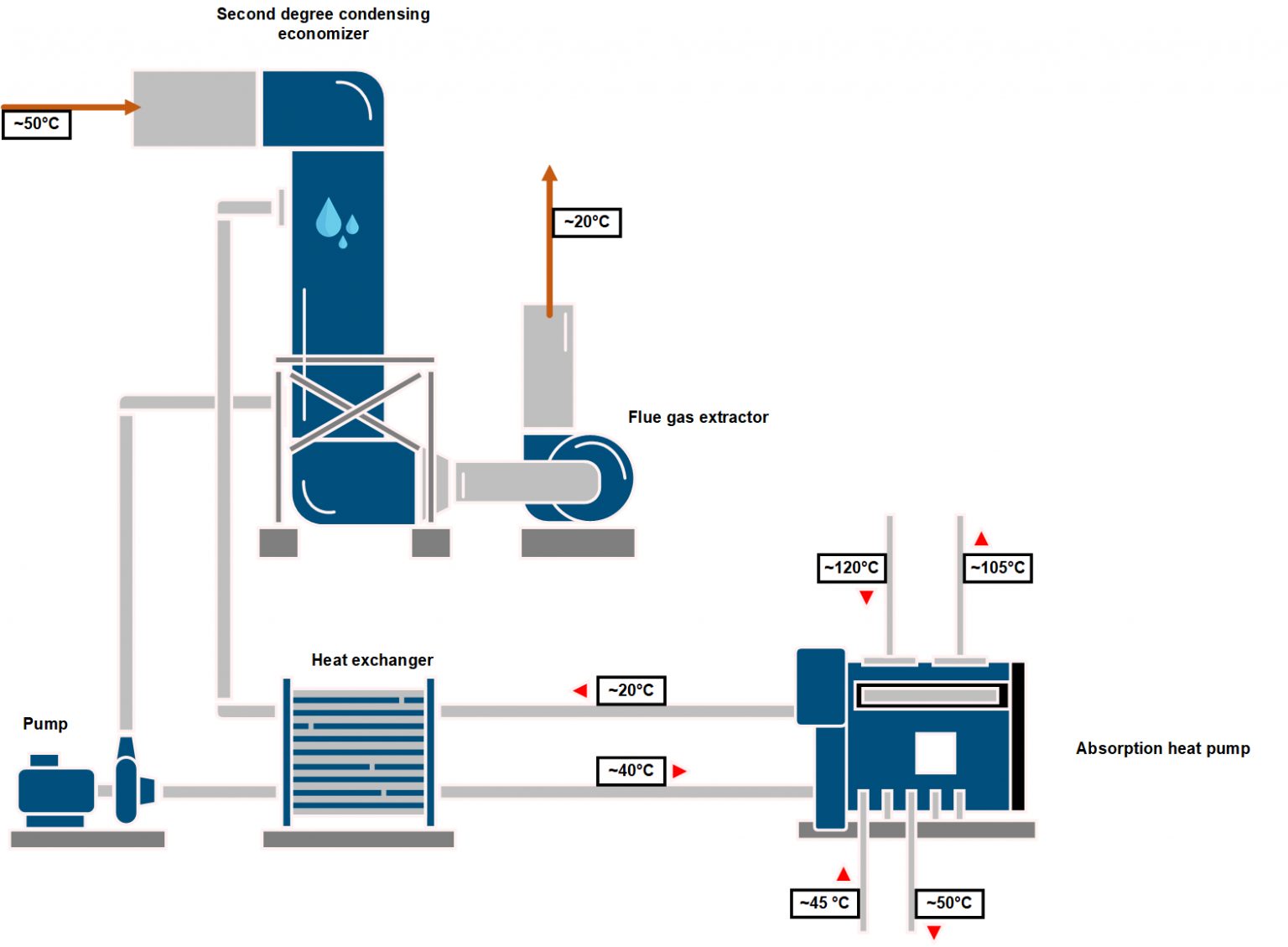

We assess flue gas exit temperature and flow rate to determine whether a flue gas economiser or air preheater is viable. For boilers with flue gas exit temperatures above approximately 200 °C, an economiser heating feedwater can recover significant energy. We calculate the potential heat recovery in kW, estimated fuel saving (%), and simple payback period for the owner to evaluate.5. Condensate Recovery Assessment
Condensate returned to the feedwater tank at 80–95 °C carries significant sensible heat and reduces make-up water, water treatment chemical, and fuel costs. We survey how much condensate your plant is currently recovering versus what is being discharged to drain, identify failed or bypassed steam traps, and calculate the annual cost of condensate losses. Recommendations include trap replacement, condensate return pipework, and pumped return systems where gravity return is not possible.6. Variable Speed Drive and Pump Optimisation
Boiler feed pumps, fans, and condensate pumps running at fixed speed against a throttled valve waste electrical energy. We identify motors and pumps where variable speed drives (VSDs) would reduce electricity consumption, and calculate estimated kWh savings and payback periods based on your operating hours and electricity tariff.Deliverable
At the end of the audit, ME Engineering provides a written Energy Efficiency Report containing: current system performance data, itemised energy losses with monetary values, prioritised recommendations with estimated savings and payback periods, and a summary action plan. Implementation of recommended measures is carried out by the client or can be quoted separately by ME Engineering.
Delivered in-house by our own engineers to IBR / ASME standards, with full documentation and nationwide service support.
What you get
Clear, measured picture of where fuel and energy are being lost
Prioritised recommendations with estimated cost savings and payback periods
Combustion optimisation alone can improve boiler efficiency by (confirm with owner) %
Condensate recovery improvements reduce fuel, water, and chemical costs simultaneously
Thermal imaging identifies insulation failures invisible to the naked eye
Written report gives the owner documented evidence for capital investment decisions
Independent assessment with no obligation to purchase equipment from ME Engineering
Where it applies
Frequently Asked Questions
How long does a site energy audit take?
For a single boiler installation with moderate steam distribution, a site survey typically takes (confirm with owner) days. Larger or more complex sites with multiple boilers or extensive pipework will take longer. We confirm the scope and duration before starting.
What instruments do you use during the audit?
We use a calibrated flue gas analyser (measuring O₂, CO₂, CO, and flue gas temperature), a thermal imaging camera for heat loss surveys, ultrasonic flow meters where required, and calibrated pressure and temperature gauges.
Do we need to shut down the boiler for the audit?
No. The audit is carried out while the boiler and steam system are running at normal operating load. A brief shutdown may be needed only if physical inspection of internal surfaces is included.
What size of plant benefits most from an energy audit?
Any plant consuming (confirm with owner) litres or more of diesel or furnace oil per day, or operating a boiler of (confirm with owner) TPH capacity or above, is likely to find measurable savings that justify the audit cost. Smaller plants can also benefit, particularly if fuel costs are a significant share of operating expenditure.
Can you audit boilers not manufactured by ME Engineering?
Yes. The energy audit service applies to any make or model of fire-tube or water-tube boiler, regardless of manufacturer.
